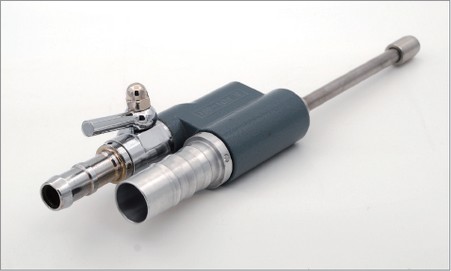

F series
F and F+ series suction guns are designed to be suitable for FDY, POY yarn at high speed up to 8000m/min. F+ series is a modified version of F series of suctioin guns. It is made with a new configuration of nozzle and chamber, which is achieved with stronger suction force, compared to F series. Long life time thanks to materials used for suction gun body and internal parts.
F series
Model
|
F07/405-01 |
F07/420-01 |
F+10/385-01 |
F+07/415-01 |
F+05/382-01P |
Operating Pressure (bar)
|
6-14 |
6-14 |
6-14 |
6-14 |
6-14 |
Air Consumption(m3/h)
|
52(Pe+1) |
52(Pe+1) |
58(Pe+1) |
58(Pe+1) |
58(Pe+1) |
Max. yarn speed(m/min)
|
8000 |
8000 |
8000 |
8000 |
8000 |
Tube internal diameter(mm)
|
7 |
7 |
10 |
7 |
5 |
Tube length(mm)
|
200 |
205 |
190 |
200 |
175 |
Max. yarn count (dtex)
|
3000 |
3000 |
10000 |
3000 |
1600 |
Weigth(kg)
|
1.2 |
1.1 |
1.35 |
1.05 |
1.0 |
Working method
|
twisting |
twisting |
twisting |
twisting |
twisting |
Air inlet connection
|
Φ32mm 1"BSP |
Φ25mm 3/4"BSP |
Φ32mm 1"BSP |
Φ25mm 3/4"BSP |
Φ25mm 3/4"BSP |
Air exhause connection
|
Φ32mm |
Φ32mm |
Φ32mm |
Φ32mm |
Φ32mm |
