KU483 Knitting Machine

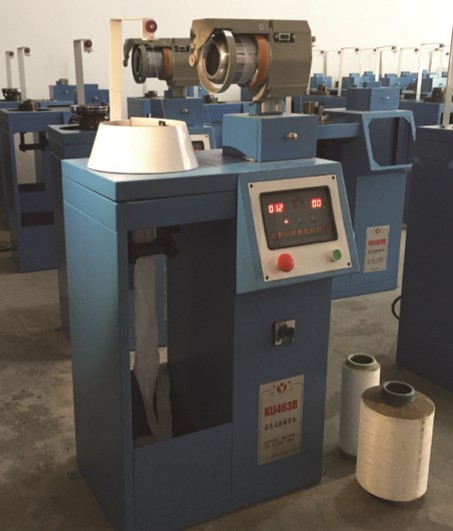

KU483 (B) Knitting Machine for Dyeing Test
machine, which was carefully designed to fit the requirements of the industry. This machine will run stable and reliably utilizing a computerized controlling system, adopting the inverter to adjust the speed, is suitable for knitting chemical fibers in the range from 10-600 dtex. It is the ideal equipment for the chemical fiber maker and knitting factory.
1. Needle cylinder diameter:89mm(3 1/2")
2. Machine types(Table 1)
1. This machine is consisted of five parts, which are frame, yarn-storage,
• Yarn-storage: STAR type storage –feeder winds
• Take off: the ratchet wheel and roller continuously draw the fabric to the box,
Main Specification:
2. Machine types(Table 1)
Type |
13 |
16 |
22 |
24 |
25 |
27 |
29 |
Needle No. |
144N |
176N |
240N |
260N |
280N |
300N |
320N |
3. Rotary speed: 0-350RPM(speed can be adjusted)
4. Machine dimension: (L)700, (W)400, (H)1700mm
5. Net weight: 85kg
6. Total power consumption : 300w
7. Production capacity: Continuous knitting style, knitting 5cm only takes 12
seconds, 300 sections / hour ; Discontinuous knitting style, 220sections/hour
Structure and Usage
knitting, take off, controlling.
• Frame : Solid sheet metal frame • Yarn-storage: STAR type storage –feeder winds
the yarn from the package to the yarn-drum of the storagefeeder.
• Knitting: The needles and sinkers knit the yarn into a hose.
• Take off: the ratchet wheel and roller continuously draw the fabric to the box,
which stores the fabrics.
• Controls: After receiving the order, then control the running.
