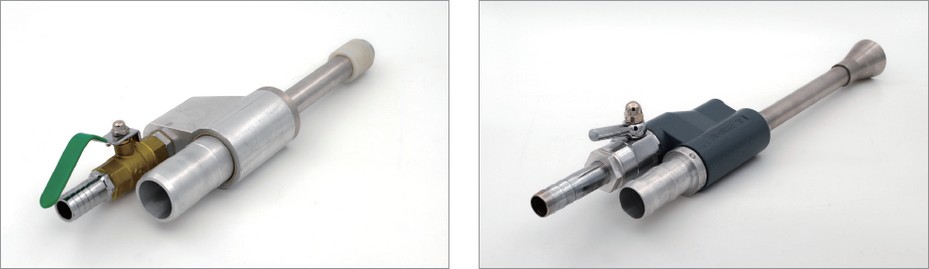

S and B series
S and B series suction guns are designed to be suitable for staple fiber, BCF yarn at high speed up to 8000m/min. Long life time thanks to materials used for suction gun body and internal parts. Lower air consumption with different design of nozzle and chamber.
B series
S series
Model
|
S07/425-04 |
S10/425-04 |
S16/460-04 |
B10/330-05 |
B18/290-03 |
Operating Pressure (bar)
|
6-14 |
6-14 |
6-14 |
6-14 |
6-14 |
Air Consumption(m3/h)
|
52(Pe+1) |
52(Pe+1) |
52(Pe+1) |
52(Pe+1) |
52(Pe+1) |
Max. yarn speed(m/min)
|
8000 |
8000 |
8000 |
8000 |
8000 |
Tube internal diameter(mm)
|
7 |
10 |
16 |
10 |
18 |
Tube length(mm)
|
220 |
210 |
220 |
140 |
100 |
Max. yarn count (dtex)
|
3000
|
10000 |
>10000 |
10000 |
>10000 |
Weigth(kg)
|
1.0
|
1.05 |
1.5 |
1.2 |
1.1 |
Working method
|
twisting |
twisting |
twisting |
twisting |
twisting |
Air inlet connection
|
Φ32mm 1"BSP |
Φ25mm 3/4"BSP |
Φ25mm 3/4"BSP |
Φ25mm 3/4"BSP |
Φ25mm 3/4"BSP |
Air exhause connection
|
Φ32mm |
Φ32mm |
Φ32mm |
Φ38mm |
Φ38mm |
