Metal filter media

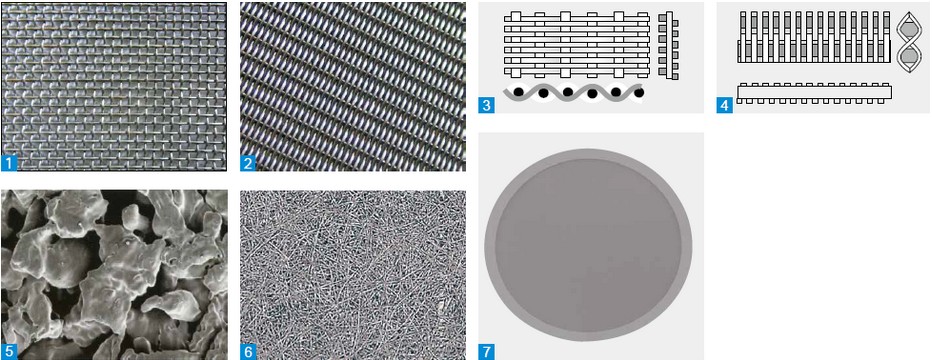

1. Plain weave
2. Twill weave
3. Plain dutch weave
4. Reverse dutch weave
5. Stainless metal sand
6. Sintered fiber
7. Etched photo film
2. Twill weave
3. Plain dutch weave
4. Reverse dutch weave
5. Stainless metal sand
6. Sintered fiber
7. Etched photo film
Futai can provide a serial of wires according to the end applications in different types of raw material, such as 304, 304L, 316, 316L, 430, 317L, 904L, N6, copper, etc., made in any kind of weave, such as plain weave, twill weave, plain dutch weave, reverse dutch weave. Hereafter we list the commonly used mesh size of metal wire. If any special requirement, please contact us.
Mesh |
Material |
Weave |
Wire Dia. (mm) |
Opening Width(mm) |
Opening area percent (%) |
Theoretical weight(KG/m²) |
20 |
304 |
Plain weave |
0.4 |
0.87 |
46.9 |
1.6 |
24 |
304 |
Plain weave |
0.3 |
0.758 |
51 |
1.08 |
30 |
304 |
Plain weave |
0.3 |
0.546 |
41.5 |
1.35 |
40 |
304 |
Plain weave |
0.2 |
0.435 |
47 |
0.8 |
50 |
304 |
Plain weave |
0.2 |
0.308 |
36.7 |
1 |
60 |
304 |
Plain weave |
0.19 |
0.233 |
30.38 |
1.08 |
80 |
304 |
Plain weave |
0.12 |
0.1975 |
38 |
0.576 |
100 |
304 |
Plain weave |
0.1 |
0.15 |
36 |
0.5 |
120 |
304 |
Plain weave |
0.08 |
0.13 |
31 |
0.38 |
150 |
304 |
Plain weave |
0.06 |
0.1 |
37.5 |
0.27 |
180 |
304 |
Plain weave |
0.051 |
0.09 |
40.7 |
0.234 |
200 |
304 |
Plain weave |
0.05 |
0.74 |
34 |
0.25 |
250 |
304 |
Twill weave |
0.04 |
0.0616 |
36 |
0.2 |
325 |
304 |
Twill weave |
0.035 |
0.04315 |
30 |
0.199 |
400 |
316 |
Twill weave |
0.029 |
0.0385 |
36 |
0.125 |
450 |
316 |
Twill weave |
0.0275 |
0.0289 |
26.8 |
0.16 |
500 |
316 |
Twill weave |
0.025 |
0.0258 |
25 |
0.156 |
