FT series false twist bearings & assemblies

Designed with a two row deep groove ball, the bearings have advantages of high carrying capacity and steady running.
The multi labyrinth rings or the L type ferrule complete sealing construction guarantees the bearing a good sealing function.
The parts for the assemblies are strictly selected. The revolving parts are precisely dynamical balanced. The maximum speed is 20000rpm.
The key parts for high - speed false twist textured yarns or false twist texturing machine.
Different synchronizing belt pulley can be provided according to the different demands of users.

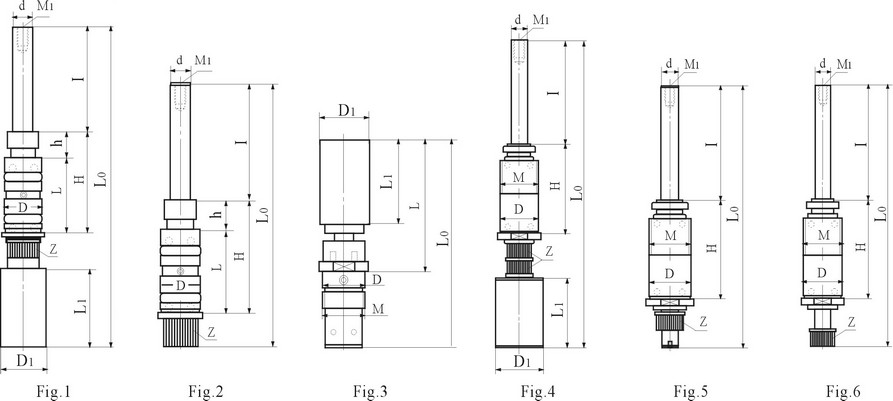

TYPE
D
d
D1

M

M1
Z
H
h
I
L
h
L0
MACHINE
PART No.
REMARK
FT1
23
12
28
M5
20
59

61.5
43.8
45
187
FK6-600,700
5757358
Fig.1
FT2347-N1A

15.2
FK6-900,1200

FT2

59

FK6-600,700,900
5409563
Fig.2
FT2347-N2A


15.2

138
FK6-1200

FT3
21
8.1
25
M21 × 1




67.1
43
105.5
FK6-600,700
5543920
Fig.3
FT2865-N1
28
10.7
35

M5

M28 × 1.5

21

(24)
67.5

78.5

52
232
TFT-1070

Fig.4
FT2865-N2




180

Fig.5
FT2865-N2A




Fig.6
FT2347B-N1
23
12
28
M5
20

15.2
90.5
43.8
45
216


Fig.1
FT2347B-N2


15.2

169


Fig.2
FT2347C-N1
28
59

45
187


Fig.1
FT2347C-N2

59


137


Fig.2

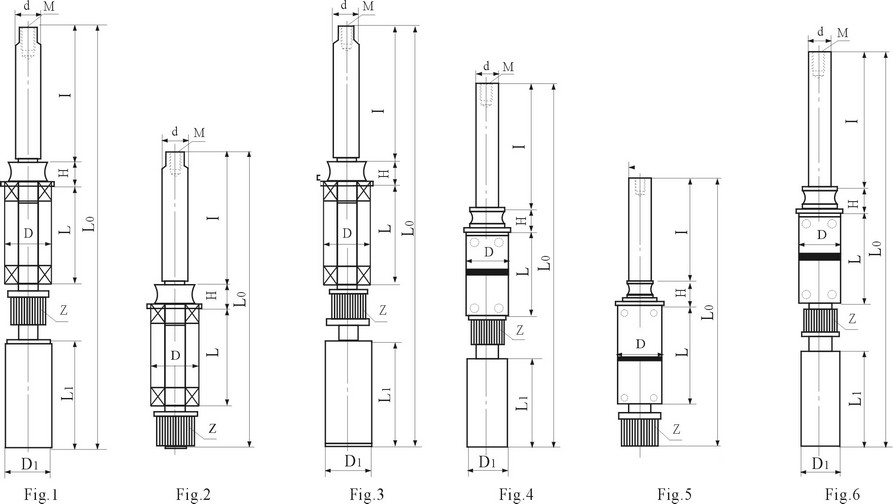

TYPE
D
d
D1
M
Z
H
I
L
L1
L0
MACHINE
PART No.
REMARK
FT2245-N1
22
12
21
M5

21

(18)

(17)
10.5
59.5
44
48
187

Rieter-Scragg

DCS-1200
FT2244
Fig.1
FT2245-N2


131
Fig.2
FT2245-N1A
21
48
187
Fig.3
FT2244-N1
42.5
187
Fig.4
FT2244-N2


132.5
Fig.5
FT2244-N1A
21
48
187
Fig.6
FT2247-N1
25
11.5
45.5
187
SDS-700

Fig.4
FT2247-N2


132.5

Fig.5
FT2247-N1A
21
48
187

Fig.6

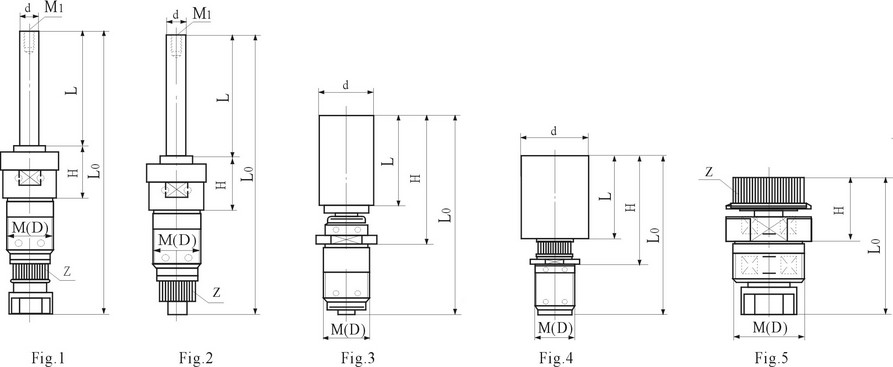

TYPE
M(D)
d
M1
Z
H
L
L0
MACHINE
REMARK
FT2144-N1
M21×1
8.1
M5
22
24
54
131
IVF701
Fig.1
FT2144-N2
124
Fig.2
FTY2844-N3
25.1


61.5
43
94.5
Fig.3
FTY2934-N4
M24×1
40.2

26
65
50
95
Fig.4
FT3023-N5
M25×1


38
22.5

48.5
Fig.5
