Synthetic Fiber Spinneret

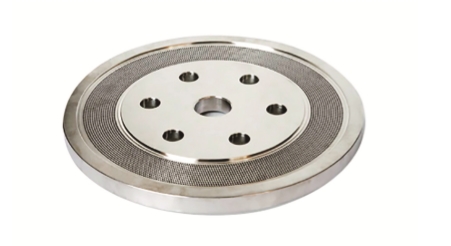

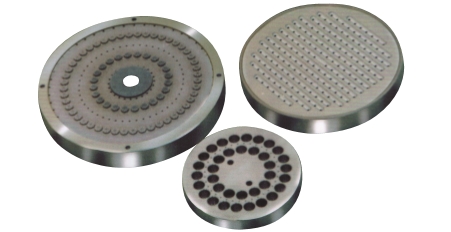

Wet Spinning Spinneret

Spinneret for spinning is the key component for any type of synthetic fiber spinning. We design and manufacture any kind of spinneret, especially spinneret for POY FDY spinning line with different cross-section shape of capillary hole in any filament yarn count.

In addition, wet spinning is also used to produce carbon fiber. Carbon fiber can be classified into PAN-base, and pitch-base. Nowadays, More than 90% carbon fiber is Pan carbon fiber. The PAN carbon fiber is produced via carbonization procedure of Pan, which is of high tension strength and high elastic strength. In general, wet spinning and dry-wet spinning are the main wet spinning methods. Especially the wet spinning is mostly used, which is of high productivity. In comparison with dry-wet spinning, the spinnerets used for wet spinning have more holes.

Wet Spinning is one of the major synthetic fiber spinning methods. Firstly the polymers need to be dissolved into solvent. Then the polymer solvent is extruded through the spinneret immersed in tanks which contains the polymer solvent, and then form the filament via solidification. Acrylic, vinyl, rayon are produced by this method.

Material	stainless steel, tantalum, gold-platinum alloy
Number of holes	200,000, etc.
Shape	round, rectangular, ring, etc.
Diameter	0.03-0.3mm or on request
L/D	1-3 or on request
Application	Rayon, Carbon fiber, Acrylic, Aramid, Vinylon, etc.

Dry Spinning Spinneret

Material	stainless steel, tantalum
Number of holes	5000, etc.
Shape	round, Triangular, etc
Diameter	0.06-0.5mm or on request
L/D	1-15 or on request
Application	Acrylic, Acetate, Triacetate, Spandex etc.

In dry spinning, the polymer in the first is dissolved into solvent, then is extruded from the spinneret into the hot air and at last is solidified into filament due to rapid evaporation. Acetate, acrylic and spandex can be produced in this method. In comparison with round hole spinnerets, the irregular hole spinnerets place higher requirement in the accuracy for the hole of width, length and the angle of guide hole.
