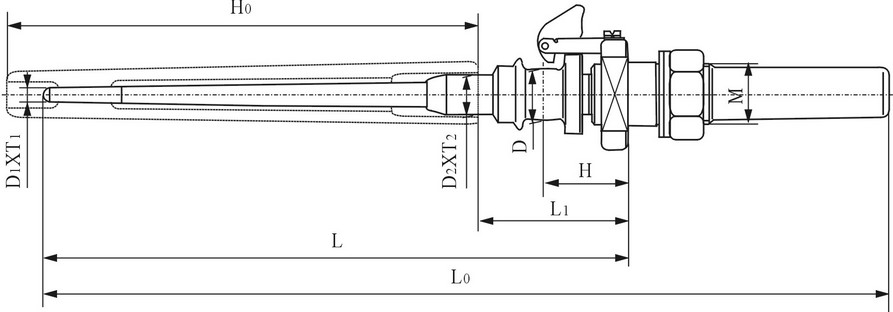

Ring spinning and twisting spindles


TYPE
H
Lo
Ho
L
L1
D
D1 ×T1
D2 × T2
M
NECK BEARING
TYPE OF MACHINE
D1201B
35
322.5
180
213.5
62.5
Φ24
Φ4.15×0.042
Φ16.34×0.01
M24×1.5
DZ2
FA502
FA503
D1202B
342.5
233.5
Φ5×0.04
D1203B
353.5
205
244.5
Φ6×0.055
Φ16.94×0.01
D1203C
Φ22
FTD3206C-20.5
28
335.3
244.5
55.5
Φ20.5
Φ5.027×0.0392
Φ16.34×0.025
M25×1.5
DZ2A
FA504
FTD3206C
Φ22
FTD3203
35
353.5
244.5
62.5
Φ24
Φ6×0.055
Φ16.94×0.01
DZ2
FA505
FA506
FA507
FA508
FA541
FA528
FTD3203C
Φ22
DZ2A
FTD3203CE
FTD3203C-20.5
Φ20.5
FTD3203CE-20.5
FD4203C-20.5
FD4203C
Φ22
FD3103
Φ19
DZ1
F1518
F1520
EJM128
DTM129
FD4103
Φ18.5
M22×1.5
FD4103C
DZ1A
FD5103C
M25×1.5
FD5103E
Φ19
DZ1
FTD18.5B
327
Φ18.5
M24×1.5
D1203E
Φ24
M25×1.5
DZ2
A631
A631E-II
FA721-75A
FTD3203E
Spindle types with letter "C" means the spindles have smaller outer diameter neck bearings and smaller wharves. It is beneficial to save the energy.    The letter ‘E’ means spindle with knee brake.
Optimum running speed range is 12000-16000rpm, with the proper spinning process conditions and high quality bob- bins, the maximum speed can    reach to 18000rpm-22000rpm depending on their different structure.
For the FTD3200 series spindles, each type of their bolster housing screw can also be made into M24x1.5. In this case their type are noted "M24", for    example, FTD3203C-M24.
For all series spindle types, when the spindle house and spindle rail hole is on coordinated installation, the letter "P" and the fit dia. Are noted behind for    example, FTD3203CE-20.5P25.

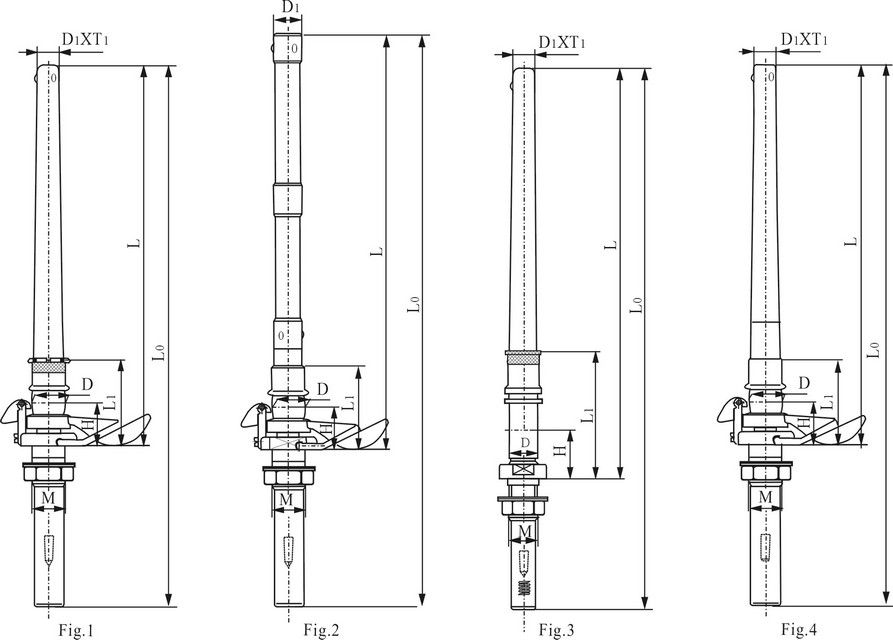

Ring spinning and twisting spindles

TYPE
H
L0
L
L1
D
D1 ×T1
M
NECK BEARING
TYPE OF MACHINE
REMARKS
FTD1313
35
442
310
70
Φ27
Φ17.93×0.022
M27×1.5M25×1.5
DZ3
B582,B583
B601,FB501,
FA721-75A
FB725
Fig.1
FTD3313
435.5
FTD3213
420.5
Φ24
M25×1.5
DZ2
FTD3314Z
482
350
Φ27
Φ23.3
M27×1.5
DZ3
FTD4212C
39
440.5
333
103
Φ22.5
Φ16.134×0.0253
M23×1.5
DZ2A
FA721-100A
Fig.2
FD4213L-30
40
433
321
105
Φ30
Φ21.75×0.01
M22×1.5
DZ2
F1518,F1520
EJM128
DTM129
Fig.3
FD5111E
29
333
250
75
Φ19
Φ17×0.01
M22×1.5
DZ1
FTD19A
35
340.5
250
75
Φ19
Φ14.08×0.0263
M22×1.5
DZ1
Fig.4
Spindle types with letter "C" means the spindles have smaller-outer-diameter neck bearings and smaller wharves. It is beneficial to save the energy.
Optimum running speed range: for spinning is 12000-16000rpm, with the proper spinning process conditions and high quality tubes, the maximum speed    can reach to 18000rpm-22000rpm depending on their different structure; for twisting is 7000-12000rpm.
Different types and sizes can be made for user's requirement.
