BD series two-for-one twisting spindles
TYPE |
DIAMETER |
D |
L |
L0 |
M |
NECK BEARING |
TYPE OF MACHINE |
REMARKS |
BD1164-1315 |
Φ140 |
Φ34 |
55.3 |
380.1 |
M25×1.5 |
DZ3 |
Murata No.363,PA761, PA762,RD321B,EJP834 |

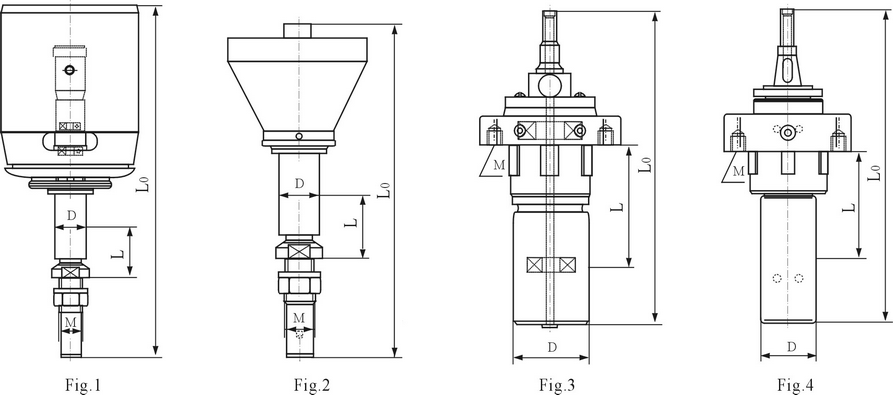

Fig.1 |
BD1164-1615 |
Φ166 |
|||||||
BD2162 |
Φ58 |
Φ28 |
53 |
Murata 310C |
Fig.2 |
|||
BD1297 |
Φ170 |
Φ50 |
80 |
210 |
2-M10 |
Fig.3 |
||
BD1475 |
Φ36 |
65 |
203 |
Fig.4 |
BD series two-for-one spindles are made in an elastic construction with a good vibration damping function or a two-row ball bearing construction.
Rotating parts are made with precise dynamical balance; spinning parts are made in wear-proof pottery with the advanced treatment of isotonic spraying.
They are made in imported centripetal ball bearing with double side seal and roller bearing with double-side seal.
Main advantages: Working at high speeds, steady operating, Small amplitude, Lower noise, Long service life, easy maintaining.
