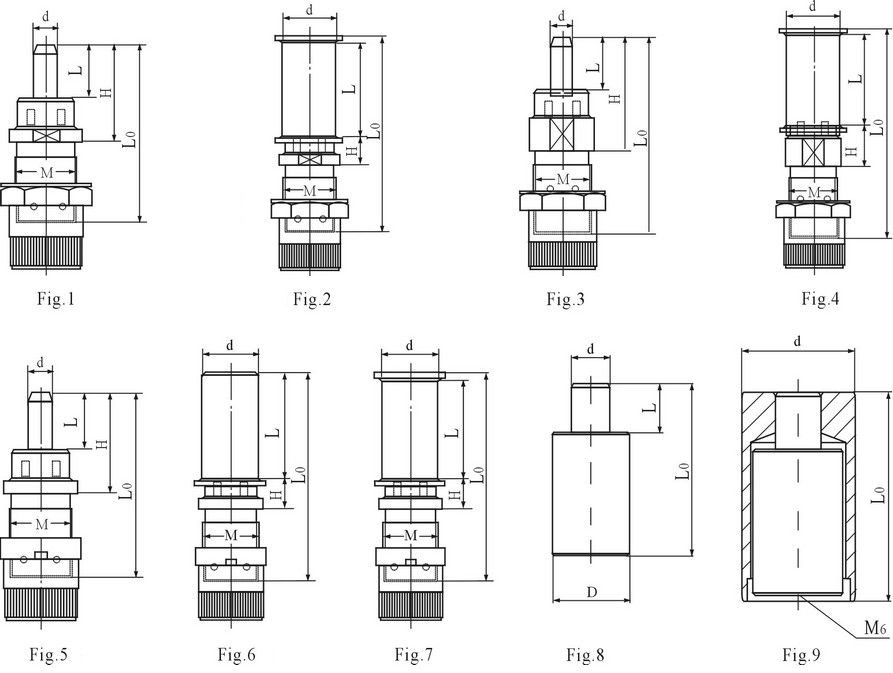

Press pulley bearings & assemblies



TYPE
M(D)
d
H
L
L0
MACHINE
PART No.
REMARK
FTY2443
M21×1
Φ 7.8
33.7
18.5
62
ICBT
FT106069A
Fig.1
FTY2443-N3
Φ 22
12
40
82.8
FT106070A
Fig.2
FTY2454
Φ 7.8
42.7
19.7
74
FT106015C/D
Fig.3
FTY2454-N3
Φ 22
17.5
40
91.3
FT106057D
Fig.4
FTY2543
Φ 7.8
34.7
19.7
63
FT106014B/C
Fig.5
FTY2543-N3
Φ 22
10.5
42.4
81.2
FT106006C
Fig.6
FTY2543-N3A
12
40
82.8
FT106070B
Fig.7
FTY2032-N3

Φ 25


46
FK6-900

Fig.9
FTY2032
20
Φ 10

12.7
44.7

Fig.8

Belt false twist bearings

TYPE
NAME
D/M
D1
Z
H
L1
L
L0
RPM
MACHINE
REMARK
FTP-N1
Bearing
Φ 20

21
24.5
13
102.5
137
20,000
333-II
Fig.1
FTP-N2
Bearing
M14×1


24

35
Fig.2
FTP-N3
Bearing
M28×1.5

21
27
30

75.5
18,000
Fig.3
FTP-N4
Bearing
M6×1




43
Fig.4
FTP-N5
Bearing
M21×1


35.5
27.5

60.5
Fig.5
FTP-N6
Bearing
M8



30

53
Fig.6

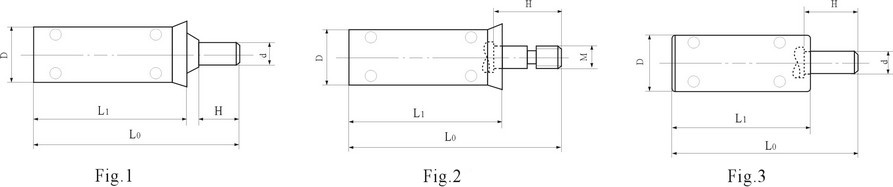

Separator roller

Designed with a two -row deep -groove ball bearings have advantages of steady running and compact volume.
Advanced processing technology and strictly selected to assembly.
Complete sealed system and a good dust proof effect.
Suitable for draw twisters and draw winders.
TYPE
D
d/M
J
L1
L0
PART NO.
REMARK
FTF2258
Φ 21.2
Φ 8
15
58
78
VR7-0964447
Fig.1
FTF2275
75
95
VRII-0964434
FTF2258A
M8
28
58
83
VR2-0964430
Fig.2
FTF2275A
75
102
VR6-096442
FTF2243
Φ 8
20
43
59
VR8-0964426
Fig.3
FTF2237

37
252.5

Fig.1
