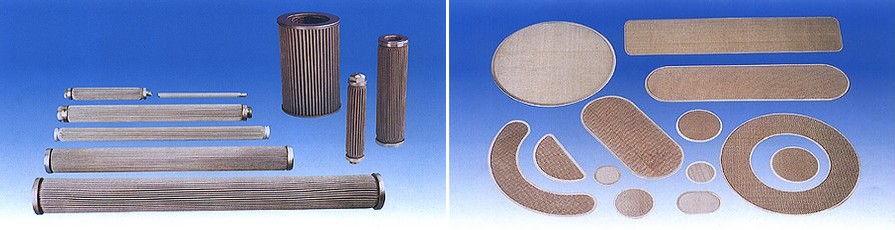

Pack filter and candle filters

Futai has many types of filters for spin pack and candle filters in different shapes and dimensions. We can manufacture pack filter and candle filters according to samples or drawings, as well offer professional services for the development of new pack filter and candle filter as whatever you request.

Pack filters

The materials used in producing filter screen net are stainless steel fiber net, sintered stainless steel felts, phosphorus copper nets and brass nets, etc.. Single or multi-layers filter plates are encapsulated in nickel plated copper, aluminum or stainless steel frame in different shapes, such as round, semi-circular, rectangular, oblong, crescent-shaped, etc., and as well gaskets in copper, aluminum or stainless steel.
Round           Unit: mm

D

42

46

48

50

52

55

57

58

59

60

64

65

66

68

69

70

72

74

75

76

77

78

79

80

85

90

95

98

100

105

115

120

125

128

150

160

165

168

170

175

180

185

189

204

241

298

309

350

380

558



Doughnut           Unit: mm

D

108

158

160

160

160

160

172

176

178

181

d

64

61

89

90

73

60

110

110

48

105

D

187

197

203

216

229

234

295

337

365

370

d

133

127

115

116

134

211

203

243

275

270



Oblong           Unit: mm

L

54

68

69

79

96

165

208

210

B

38

47

53

45

68

25

96

87

R

19

23.5

26.5

22.5

34

12.5

48

43.5

L

257

300

328

339

339

350

415



B

40

76

87

87

105

63

105



R

20

38

43.5

47

47.5

31.5

52.5



Candle filters

The candle filters are made from stainless steel sintered fiber net and stainless steel weave wire cloth. We can make filter it according to your requirements.

Technical Parameters
Operation pressure:30Mpa
Pressure differential:5Mpa
Filter rating:10~60μ
Operation temperature:300℃
Fluid viscosity:260pa.s

Code

D(mm)

L(mm)

M1

M2

Area( ㎡ )

CF-35A

35

207

3/4"-16UNF or M20×1.5



0.07

CF-35B

35

425

3/4"-16UNF or M20×1.5

3/16"-24UNC or M6

0.15

CF-35C

35

485

3/4"-16UNF or M20×1.5

3/16"-24UNC or M6

0.17



Code

D(mm)

L(mm)

M

Area( ㎡ )

CF-60A

60

500

M33×1.5

0.5

CF-60B

60

400

m33×1.5

0.4



Code

D(mm)

L(mm)

M1

M2

Area( ㎡ )

CF-50A

50

500

M30×1.5

M20×1.5

0.32

CF-50B

50

870

M30×1.5

M20×1.5

0.54

Any dimension available according to customer’s requirements.
